Silica for inkjet media

Free samples available upon request

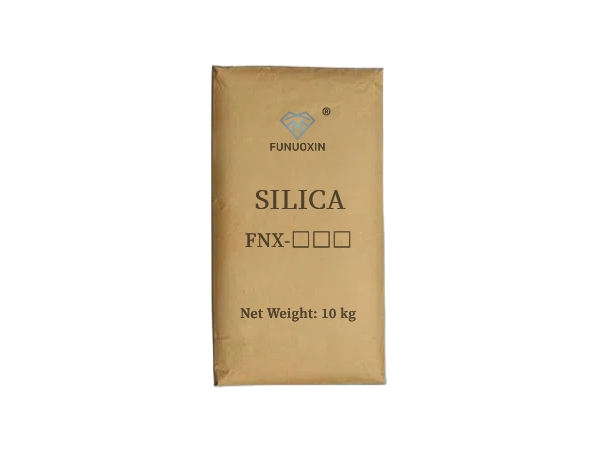

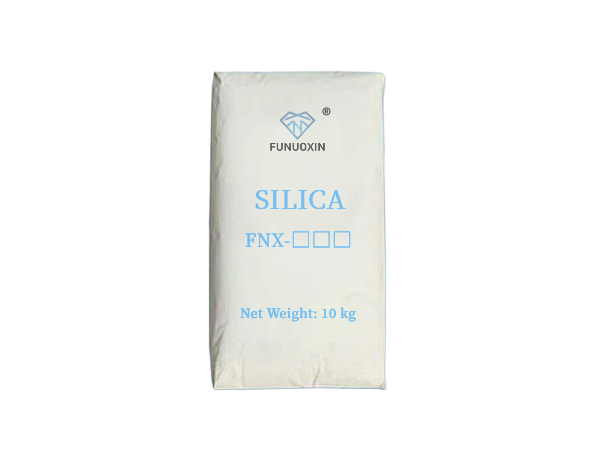

Package: paper-plastic valve bag, kraft paper composite bag and customizable options...

Size: 10kg/bag

HS Code: 2811.22.00

Appearance: fine, free-flowing, white powder

Get The Latest Quote

Description

FNX series silica products offer exceptional performance, effectively optimizing print clarity and boosting ink receptivity across various inkjet media applications

Our range includes a variety of products with distinct structures and particle sizes. Listed below are our carefully selected suggestions for silica solutions in inkjet media, highlighting the most suitable choices from our offerings.

• FNX series silica products are well-suited for inkjet media applications such as eco-solvent prints, digital photo paper coatings, billboards, inks, and polypropylene (PP) substrates, ensuring excellent color reproduction and print clarity.
• They provide outstanding print quality with controlled ink absorption, ensuring sharp images, vibrant colors, and minimized bleeding.
•FNX series silica products feature uniform particle distribution and excellent dispersibility, helping to reduce surface defects such as cratering or dewetting defects, while significantly improving the smoothness and slip properties of paper coatings.
• With superior absorption capacity, FNX series silica products are easy to integrate into diverse inkjet media formulations, supporting efficient production processes and consistent results.
• Moreover, they contribute to improved media stability and surface integrity, enhancing durability for long-lasting print performance.

Physico-chemical data

Properties	Unit	FNX 330	FNX 1067	FNX 1066	FNX 906	FNX 401	FNX 301
SiO2 content (dry basis)	wt.%	≥99.0	≥99.0	≥99.0	≥99.0	≥99.0	≥99.0
Loss on drying (105℃)	wt.%	≤8.0	≤8.0	≤8.0	≤8.0	≤8.0	≤8.0
Loss on ignition (1000℃)	wt.%	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0	≤6.0
Sieve Residue (45μm)	%	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5
PH (5% suspended solution)	-	6.0-7.0	6.0-7.0	2.0-7.0	3.0-7.0	2.0-7.0	6.0-7.0
DBP oil absorption	g/100g	240-300	240-300	240-300	240-300	240-300	240-300
Specific pore volume	ml/g	1.8-1.9	1.8-1.9	1.8-1.9	1.8-1.9	1.8-1.9	1.8-1.9
Average particle size (laser diffraction)	μm	6.0-8.0	5.5-7.5	7.0-9.0	7.0-9.0	7.0-9.0	7.0-9.0
Surface treatment	-

Brief description
This series of silica gel products is designed for inkjet media applications and consists of specially engineered grades with high porosity and controlled particle size, ensuring efficient ink absorption and fast drying. Designed for vivid color reproduction and sharp detail, these silica gels support both dye and pigment-based inks, offering versatility across various inkjet coating formulations.
